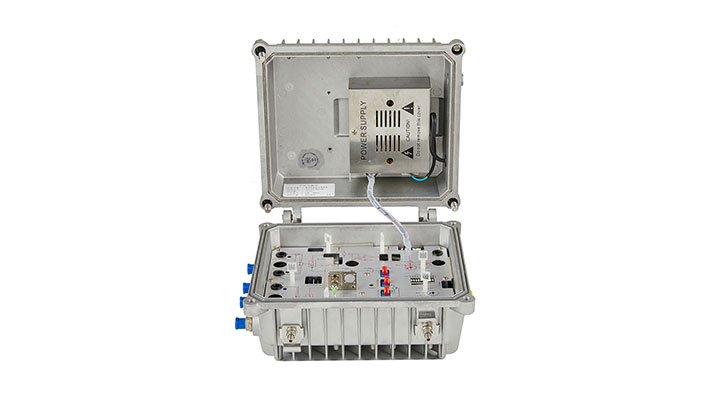

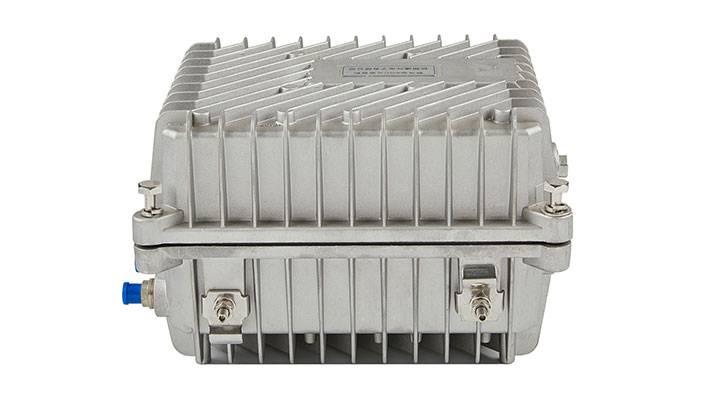

TOR2400  outdoor optical receiver adopts complete aluminum die casting process, which has good performance of waterproof, heat dissipation, conductivity and corrosion resistance.

　　The device adopts high performance and high efficiency O/E converter, the first stage is amplified by low-noise GaAs amplifier, and the second stage by  gain GaAS power doubler module, which ensures perfect performance values of CNR, CTB and CSO under the condition of high-level output.

1.Adopts high performance O/E converter, wavelength range 1200~1620nm.

2.Optical AGC control, when input is within range -7~+2dBm, the output level keeps unchanged.

3.High Gain, low distortion.

4.Perfect surge suppression circuit improves the ability of anti-thunder and preventing surge impact.

5.Strict reliability test, MTBF ≥ 100000 hours

6.RF output level adjustable, slope adjustable

7.Optional RJ 45 port, SNMP management supported

8.The Operating parameters are displayed by nixie tube. In order to prolong the service life of nixie tube, when the upper cover of receiver is open, the nixie tube display turns on; when the upper cover of receiver closed, the nixie tube turns off.
