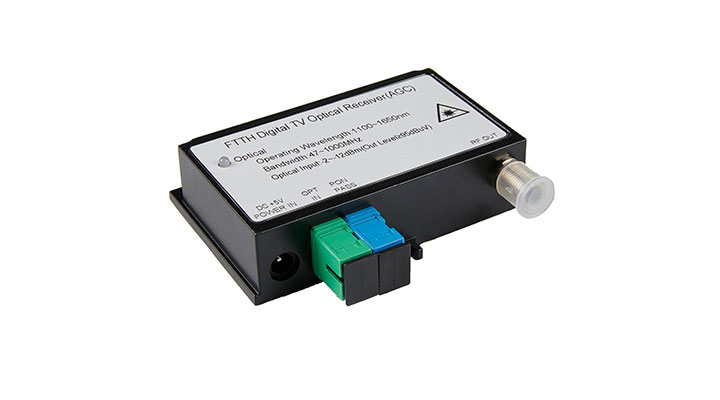

TOR 1300C FTTH optical receiver adopts high-performance and high sensitivity O/E converter, and low-noise GaAs amplifier part is used in the first and second stages. It has excellent performance in the high dynamic optical power receiving range of -20dbm to + 2dbm. It can be applied in EPON and GPON, compatible with any FTTx technology。

　　Its output can reach ≥95 dBµV, it can also work as FTTB optical node.

1. It adopts high performance O/E converter, wavelength range 1200~1620nm.

2.It can be applied in EPON and GPON, compatible with any FTTx technology.

3. Optical AGC control function, the output level keeps unchanged when input in range -12~-2dBm.

4. Low power consumption , low cost, high-performance and high stability.

5. RF output level adjustable.

6.Metal case
