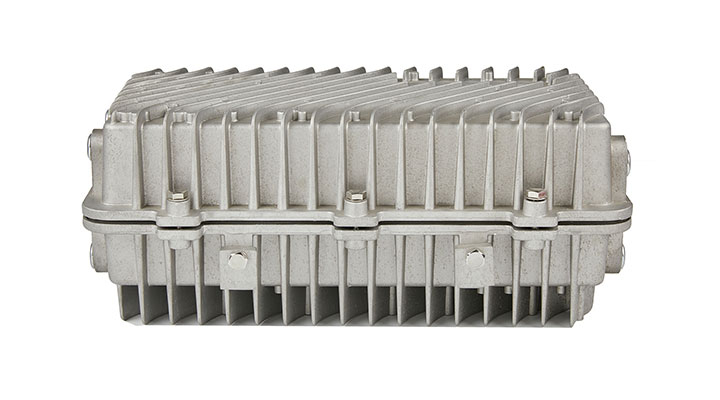

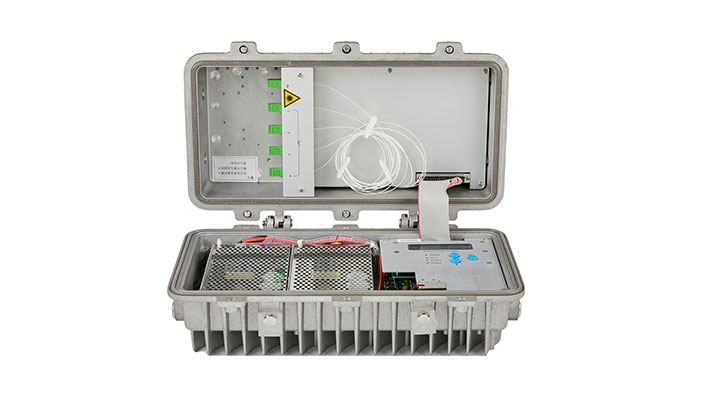

OLAH4400 series outdoor high power EYDFA are characterized by convenient use, not limited by head-end room, but very bad operating environment, which is a big challenge for heat dissipation, sealing, anti-thunder, high temperature resistance and low temperature resistance. The device adopts complete aluminum die-casting case, with good heat dissipation, conductivity and corrosion resistance. All components and parts are made of high temperature and low temperature resistant materials. The industrial anti-thunder protection enables the product to work in the harsh environment of - 45 ℃ ~ + 85 ℃.

　　It adopts two-stage amplification, the first stage adopts low-noise EDFA, the second stage adopts high-power EYDFA, the total output optical power can reach 37dBm. It can replace several or dozens of EDFA, which can greatly reduce the cost of network building and maintenance .The device will play an increasingly important role in the process of continuous extension and expansion of optical fiber network. It provides a high stability but low cost solution for the triple-play and large area coverage of FTTH.

　　Optional dual fiber inputs, in fact, built-in with a set of complete optical switch system , which can be used as the backup of A and B optical path. When the main optical line fails or lower than the threshold value, the device will automatically switch to the standby optical line to ensure the continuous operating of the device. The product is mainly used in optical fiber ring network or redundant backup network, It is featured in short switching time (< 8ms), low loss (< 0.8dbm ）, and  can be forced manually switched.

　　The core components adopts the top brand pump laser and double cladding active fiber. The optimized optical circuit design and manufacturing process ensure the best optical performance. The perfect electronic controlled  APC (automatic power control), ACC (automatic current control) and ATC (automatic temperature control) are adopted to ensure high stability and reliability of output power, as well as excellent optical performance.

　　MPU (microprocessor) with high stability and precision is adopted in the system. The optimized thermal structure design , good ventilation and heat dissipation design ensure the long life and high reliability of the device. Based on the powerful network management function of TCP / IP protocol, network monitoring and head-end management can be carried out for the status of multiple node equipment through RJ45 network management interface, supporting multiple power supply redundancy configurations, which improved the practicability and reliability of the device.

1.It adopts the top brand pump laser and double cladding active fiber.

2.Perfect APC, ACC and ATC optical circuit design ensures low noise, high output and high reliability of the device in the whole operating band (1545 ~ 1565nm).

3.It has the function of automatic protection of low input or no input. When the input optical power is lower than the set value, the laser will automatically shut down to protect the operating safety of the device.

4. Output adjustable , adjustment range 0~-4dBm.

5.The switching time of optical switch is short and the loss is small. It has the functions of automatic switching and forced manual switching.

6. Built-in dual power supply, automatically switched and hot plug in/out supported.

7. The operating parameters of the whole machine are controlled by  microprocessor, and the LCD status display on the front panel has many functions such as laser status monitoring, parameter display, fault alarm, network management, etc.; once the operating parameters of the laser deviate from the allowed range set by the software, the system will alarm promptly.

8. Standard RJ45 interface is provided, supporting SNMP and WEB remote network management.
